- Place of Origin: jinan

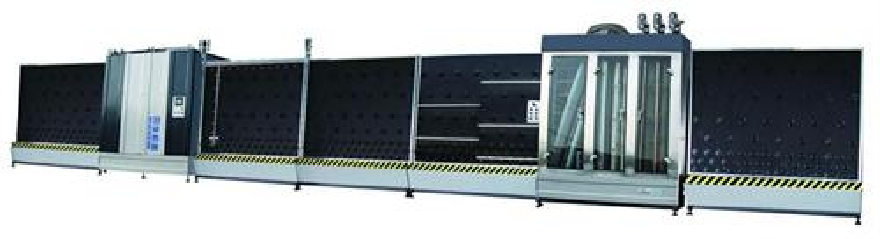

- Brand Name: beijia CNC machine
- Model Number: LWZ2500
1. This machine adopt to advanced technology from south korea.
2. PLC PANASOIC, PANASONIC transducer, WENVIEW monitor from Taiwan, sensor AUTONICS Made in South Korea. The main electric parts can running more than 50,000,000 times.its automatic running realize transportation,speed up-press glass (outside&inside)press machine-two or three pieces of glass & different sizes of glass.it adjust the size of different glass by servo motor, it is high auto and more exact running.
3. The press part can open and go side to install and maintain the machine.the front box is vaccum,the back box is pneumatic driving.It can deal with two or three pieces of glass and curtain walls.
4. when press,it is control by mechanical hand ( mechanical position & suck part from Taiwan),all this make the press right position will not dislocation.
5. when pressing glass outside the press part,human can manually repair to improve production efficiency and no dislocation.
6. vaccum generator for suck from Taiwan make sure no dislocation.
7. three step speed up 50m/min waiting part,high production efficiently.
- Place of Origin: jinan
- Brand Name: beijia CNC machine
- Model Number: LWZ2500
| Model | LWZ2500 |
| Motor Power | 380V 50Hz 33 kw |
| Brush | 3 pairs |
| Max Glass Size | 2500*3500 mm |
| Min Glass Size | 450*300 mm |
| Glass Thickness | 3-15 mm |
| Conveying Speed | 45 m/min |
| Max Insulated Glass Thickness | <50 mm |
| Glass Washing Speed | 2-8 m/min |
| Weight | 8500 kg |
| Dimension | 25000*2800*3300 mm |
